Applies To |
API.FilledContainer |
|
Description |
Returns the size of the load in a container. |
|
Syntax |
Property LoadSize As Size |
|
Data Type |
Size |
|
Remark |

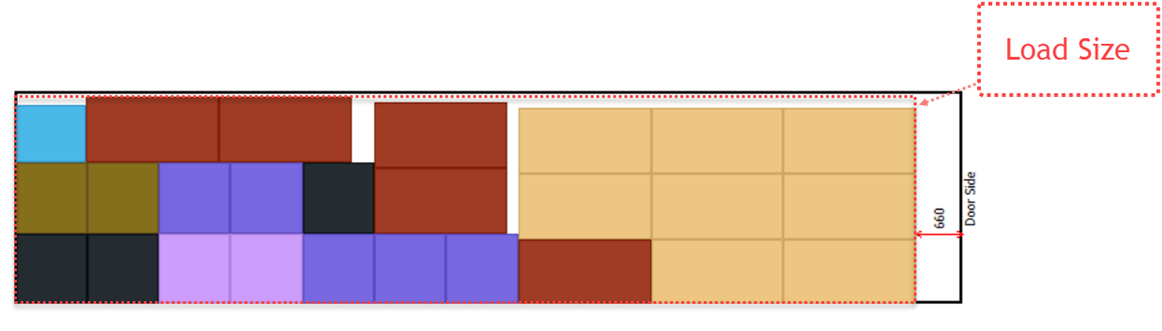

The load size is defined as the measure of the outside of the filled items in the sea container/truck/pallet/carton/ULD as shown in the red dot box below. In the truckload sample in the picture, the length of the load size is 12.94 Meter which gives 0.66 Meter (660 mm) left over in the length of the empty truck that is 13.6 Meter. In the pallet load sample, the length, width, and height of the load size are 800 mm, 500 mm and 710 mm respectively. FYI, the green line of the 3D graphics of the pallet load measures the sum of pallet height and height of the load size. In the sample, the 830 comes from 120 mm + 710 mm.
|
