OrientationsAllowed Property

Applies To

Web API.Cargo

Description

Sets or gets the orientations allowed for the placement of the cargo.

Data Type

string as OrientationEnum

Remarks

This parameter allows you to control the orientation of the cargo which presents the directions permitted in a stack. As cargo shape is rectangular, stacking is available in 6 different directions in a load. You can combine multiple directions to specify the permitted orientation of a cargo.



The following values are available for the parameter.

Description

Enumeration

Permit direction #1 and #2

OrientationsDefault

Permit direction #1

Orientation1

Permit direction #2

Orientation2

Permit direction #3

Orientation3

Permit direction #4

Orientation4

Permit direction #5

Orientation5

Permit direction #6

Orientation6

Permit direction #1 and #2

OrientationsBasic

Permit direction #1 and #2

Orientations12

Permit direction #1 and #3

Orientations13

Permit direction #1 and #4

Orientations14

Permit direction #1 and #5

Orientations15

Permit direction #1 and #6

Orientations16

Permit direction #2 and #3

Orientations23

Permit direction #2 and #4

Orientations24

Permit direction #2 and #5

Orientations25

Permit direction #2 and #6

Orientations26

Permit direction #3 and #4

Orientations34

Permit direction #3 and #5

Orientations35

Permit direction #3 and #6

Orientations36

Permit direction #4 and #5

Orientations45

Permit direction #4 and #6

Orientations46

Permit direction #5 and #6

Orientations56

Permit direction #1, #2 and #3

Orientations123

Permit direction #1, #2 and #4

Orientations124

Permit direction #1, #2 and #5

Orientations125

Permit direction #1, #2 and #6

Orientations126

Permit direction #1, #3 and #4

Orientations134

Permit direction #1, #3 and #5

Orientations135

Permit direction #1, #3 and #6

Orientations136

Permit direction #1, #4 and #5

Orientations145

Permit direction #1, #4 and #6

Orientations146

Permit direction #1, #5 and #6

Orientations156

Permit direction #1, #2, #3 and #4

Orientations1234

Permit direction #1, #2, #3 and #5

Orientations1235

Permit direction #1, #2, #3 and #6

Orientations1236

Permit direction #1, #2, #4 and #5

Orientations1245

Permit direction #1, #2, #4 and #6

Orientations1246

Permit direction #1, #2, #5 and #6

Orientations1256

Permit direction #1, #3, #4 and #5

Orientations1345

Permit direction #1, #3, #4 and #6

Orientations1346

Permit direction #1, #4, #5 and #6

Orientations1456

Permit direction #1, #2, #3, #4 and #5

Orientations12345

Permit direction #1, #2, #3, #4 and #6

Orientations12346

Permit all directions (#1,2,3,4,5,6)

OrientationsAll

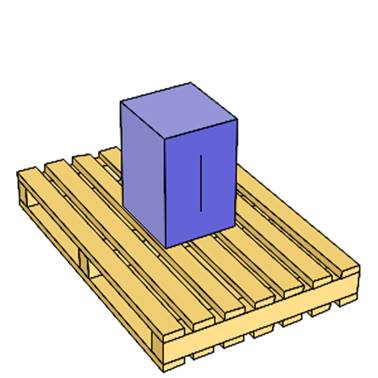

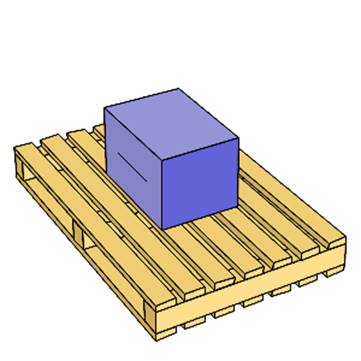

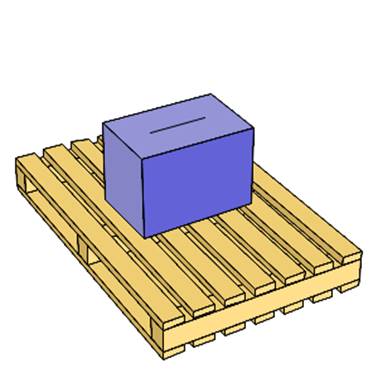

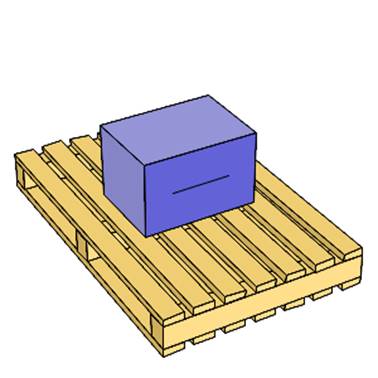

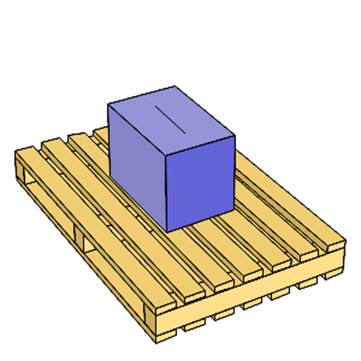

See the following table to understand the orientations. If the dimension of the cargo is L x W x H, each orientation looks like below when it was placed on a  pallet. The L is the length of the cargo, the W is the width, and the H is the height as shown below.

Direction #1

Direction #2

A box on a pallet Description automatically generated

LxWxH

A box on a pallet Description automatically generated

WxLxH

Direction #3

Direction #4

A blue box on a wooden pallet Description automatically generated

LxHxW

A blue box on a wooden pallet Description automatically generated

HxLxW

Direction #5

Direction #6

A blue box on a wooden pallet Description automatically generated

WxHxL

A blue box on a wooden pallet Description automatically generated

HxWxL
